Fanvil

Fanvil X5SG - 16 comptes SIP écran LCD Couleur 3.5" intégré avec 12 bouttons DSS pour BLF 40

Chargement...Chargement...
-48%
Telephone IP de Bureau Entreprise Ecran 16 comptes SIP écran LCD Couleur 3.5" intégré avec 12 bouttons DSS pour BLF 40 X5/X5G

Prix Normal : 2 298,00 Dh HT

Votre Prix :1 199,00 Dh HT

1 438,80 Dh TTC

Economie : 1 099,00 Dh - 48%

X5SG est un téléphone IP de bureau, entreprise, haut de gamme, avec écran Couleur LCD de 3.5" 16 Lignes, Gigabit qui est livré avec une clé intelligente DSS- 40 BLF cartographie LCD pour augmenter la productivité des utilisateurs de l'entreprise à un prix rentable. Sans alimentation.

Disponibilité : Nous consulter sur mv.ma
Evaluation :
  • Telephone IP de Bureau Entreprise Ecran 16 comptes SIP écran LCD Couleur 3.5" intégré avec 12 bouttons DSS pour BLF 40 X5/X5G
  • /images/Products/X5S-3_e71a59fc-aae4-49de-96e5-420514516864.jpg
  • /images/Products/X5S-2_6a2149b4-da08-4cb2-bdca-76bc426e11a4.jpg
  • /Images/Products/X5-dd.jpg
  • /images/Products/145-large_default_e6a32124-0222-4d1e-8c62-d104728198d8.jpg
  • /Images/x5-bb.jpg






Fiche Technique


Description du Produit
Téléphone IP X5SG avec Couleur LCD 3.5" avec une clé intelligente DSS-cartographie LCD pour le marché de l'entreprise. X5 est livré avec des fonctionnalités d'entreprise complets et l'interopérabilité avec les principales plates-formes, comme Asterisk, Broadsoft, 3CX, Elastix, etc.

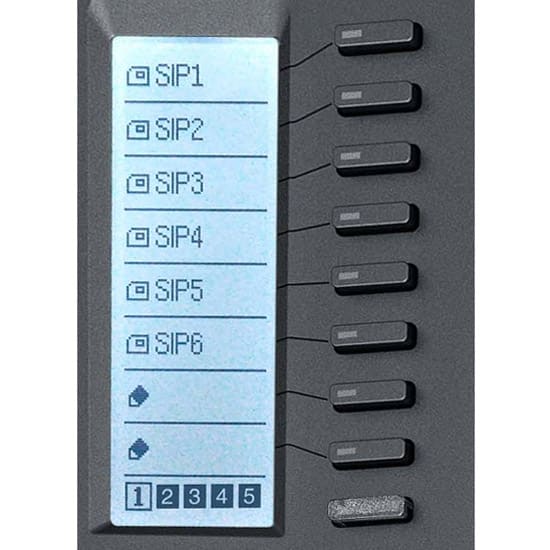

Le DSS-clé cartographie LCD est conçu avec intelligence pour soutenir l'utilisation dynamique de remplacer les modules d'extension. Il y a 8 touches DSS correspondent à l'écran LCD de fournir ligne dynamique / DSS / BLF fonctions jusqu'à cinq pages à 40 touches DSS totales virtualisés. L'utilisateur peut configurer / personnaliser chaque touche DSS dans chaque page. Chaque touche DSS a une indication LED de couleurs vert, rouge, et jaune pour refléter l'état de la touche. Il ya aussi un bouton DSS de notification d'événement pour avertir l'utilisateur chaque fois qu'il ya un événement dans un autre page (s). Un bouton page de raccourci est également conçu pour permettre à l'utilisateur de basculer rapidement entre les pages. X5 est le choix le plus économique de bureaux de PME et grandes entreprises superviseurs.
    Optionelle

Main Features

Compatible avec l'installation Manuelle Keyyo.

Smiley face
• Call out / answer / reject
• Mute / Unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial/Auto-Redial
• Do-Not-Disturb (per line / per phone)
• Auto-Answering (per line)
• Voice Message (on server)
• Local 3-way Conference
• Hot Line
• Hot-Desking
Specifications
Generic

• 3.5 inch color-screen
• 6 SIP Lines
• HD voice
• Support EHS Headphone
 8 Programmable DSS keysdynamic display support up to 40 programmable keys custom configuration
  POE Enabled
  2 LCDs (Main + DSS)
  Handset(HS) / Hands-free(HF) / Headphone(HP) mode
  Intelligent DSS Keys
  Desktop / Wall-mount installation
•  Optional External Power Supply
  Economical and Environmental friendly package
  Industrial Standard Certifications: CE/FCC

Call Features
 Call out / answer / reject
  Mute / Unmute (microphone)
  Call Hold / Resume
  Call Waiting
  Intercom
  Caller ID Display
  Speed Dial
  Anonymous Call (Hide Caller ID)
  Call Forwarding (Always/Busy/No Answer)
  Call Transfer (Attended/Unattended)
  Call Parking/Pick-up (depending on server)
  Redial/Auto-Redial
  Do-Not-Disturb (per line / per phone)
  Auto-Answering (per line)
•  Voice Message (on server)
  Local 3-way Conference
  Hot Line
  Hot-Desking

Phone Features

  Phonebook (500 entries)
  Remote Phonebook (XML/LDAP)
  Call log (300 entries, in/out/missed)
  Black/White List Call Filtering
  Voice Message Waiting Indication (VMWI)
  Programmable DSS/Soft keys
  Network Time Synchronization
  Action URL / Active URI

Audio

  HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  Wideband ADC/DAC 16KHz Sampling
  Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
  Wideband CODEC: G.722
  Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
  Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  Packet Loss Concealment (PLC)
  Dynamic Adaptive Jitter Buffer up to 300ms
  DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking
  Physical: 10/100Mbps(X5S), 10/100/1000Mbps(X5SG) Ethernet, dual bridged port for PC bypass
  IP Configuration: Static / DHCP / PPPoE
  Network Access Control: 802.1x
  VPN: L2TP (Basic Unencrypted) / OpenVPN
  VLAN
  QoS

Protocols

  SIP2.0 over UDP/TCP/TLS
  RTP/RTCP/SRTP
  STUN
  DHCP
  PPPoE
  802.1x
  L2TP (Basic Unencrypted)
  OpenVPN
  SNTP
  FTP/TFTP
  HTTP/HTTPS
  TR069

RFCs:
354/1321/1350/1769/1889/1890/2131/2132/2616/
2617/2661/2833/2976/3261/3262/3263/3264/3265/
3268/3311/3489/3711/4346/4566/5630/
5865

Deployment & Maintenance

 Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/
DHCP OPT66/SIP PNP/TR069
 Web Management Portal
 Web-based Packet Dump
 Configuration Export / Import
 Phonebook Import/Export
 Firmware Upgrade
 Syslog

Physical Specifications

 Main LCD x1: 128x64 dot-matrix with backlit
 DSS Key-mapping LCD x1: 64x192 dot-matrix
 Keypad: 38 keys, including
     4 Soft-keys
     3 Function keys
     4+1 Navigation keys + OK
     12 Standard Phone Digits keys
     3 Volume Control keys, Up/Down/Mute(Microphone)
     1 Hands-free key
     8 DSS Keys with tri-color LED
     1 Page-Switch (PS) key with tri-color LED
     1 Page-Jump/Configuration (PJC) key
 HD Hands-free Speaker (0 ~ 7KHz) x1
 HD Hands-free Microphone (0 ~ 7KHz) x1
 HD Handset (RJ9) x1
 Standard RJ9 Handset Wire x1
 1.5M CAT5 Ethernet Cable x1
 RJ9 Phone Jacket x2: Handset x1, Headphone x1
 RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled),
                                      PC x1 (Bridged to Network)
 Main Chipset: Broadcom
 DC Power Input: 5V/1A
 Power Consumption: (X5) Idle – ~ 1.1W, Peak – ~1.8W
                                  (X5G) Idle – ~ 1.55W, Peak – ~2.25W
 Working Temperature: 0 ~ 40℃
 Working Humidity: 10 ~ 65%

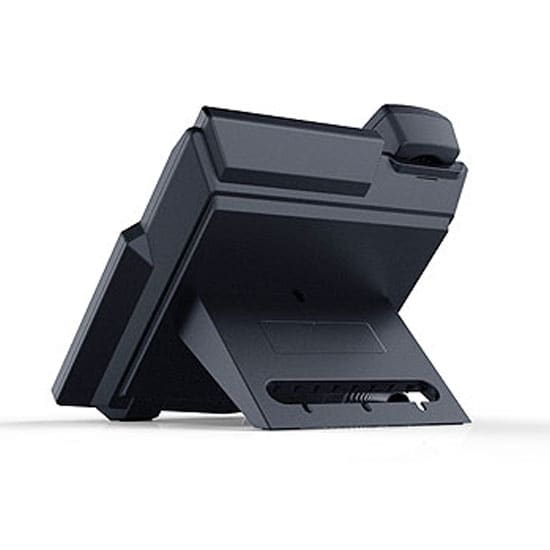

 Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
 Color: Black
 Package Dimensions: 285x270x65mm (W x H x L)
Nbr, de lignes16
Ports Ethernet2
PoEOui
ProtocoleSIP
Touches programmables36
BLF (DSS)Oui 20 X 2 Buttons
Module d'extensionNon
Interface CasqueRJ9
EcranCouleur
Ecran rétroéclairéOui
Répertoire n°500
Support MWIOui
WiFiNon
BluetoothNon
Provisioning MethodHTTP, HTTPS, TFTP, WEB GUI
Garanti1 ans

Téléchargements


iconx5s-6900-P0.15.10-1.10.6-2878T2019-03-02-12.23.44.zTélécharger
iconX5S High-quality IP Phone-Datasheet.pdfTélécharger
iconX5S High-quality IP Phone-User Manual.pdfTélécharger
