Panasonic KX-VC600CX - Système de visioconférence & Téléprésence
Chargement... Caractéristiques Techniques
PANASONIC KX-VC600CX
- Audio et vidéo Full HD d'excellente qualité
- Installation facile et utilisation simple
- Connexion stable (QoS audiovisuel)
- Jusqu'à 4 sites en conférence

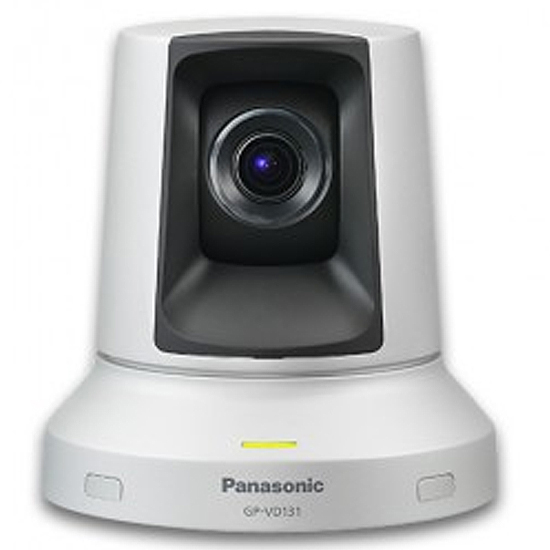

- Possibilité de connecter deux caméras
- Système à faible coût permettant de faire des économies
| Video | Video Codec | Compatible Resolutions | 1920 x 1080p *1 / 1920 x 1080i *1 / 1280 x 720p / 1280 x 540p / 960 x 540p / 704 x 480p / 352 x 240p |
| Camera Input Resolution | 1920 x 1080i | ||
| PC Input Resolutions | VGA, SVGA, XGA, HD, WXGA | ||
| Audio | Audio Codec | No. of Channels | MPEG-4 AAC LD: 2 G.722, G.722.1, G.722.1 Annex C: 1 |
| Bitrate | MPEG-4 AAC LD: 32 kbit/s (Monaural only), 64 kbit/s, 96 kbit/s (per channel) G.722: 64 kbit/s G.722.1: 32 kbit/s G.722.1 Annex C: 48 kbit/s | ||
| Sound Processing Function | Stereo Echo Canceller | ||
| Microphone | Digital Boundary Microphone KX-VCA001 (Option) Analogue Boundary Microphone KX-VCA002 (Option) | ||
| Transmission | Communication Protocol | SIP, H.323 | |
| QoS | AV QoS Call Control (wired and wireless) | ||
| Encrypted Transmission | AES | ||
| Maximum conference points | 4 *2 | ||
| External Interface | Video Inputs | HDMI (Camera) x 2, RGB (PC) x 1 (Switchable 3 inputs) | |
| Video Output | HDMI x 1, RCA (Component) x 1 | ||
| Audio Input | Analogue Boundary Microphone port x 1, Digital Boundary Microphone port x 1, RCA (Stereo) x 1, Stereo mini-plug (Headset) x 1 | ||
| Audio Output | RCA (Stereo) x 1 (Audio output to display is via HDMI), Stereo mini-plug (Headset) x 1 | ||
| Network | RJ45 port x 1 | ||
| Dimensions (width x depth x height) | Approx. 320 mm x approx. 230 mm x approx. 60 mm | ||
| Weight | Approx. 2.0 kg | ||
| Power Input | AC 100-240 V, 1.2-0.6 A, 50/60 Hz | ||
| DC Power Input | DC 16 V, 2.5 A | ||
| Power Consumption | Maximum: approx. 39 W | ||
| Operating Temperature | 0 °C to 40 °C | ||
| Operating Humidity | 10 % to 90 % (non-condensing) | ||
| NOTE | *1 The optional Activation Key Card lets you upgrade the maximum resolution of the KX-VC300 system to 1080p/i. *2 Some restrictions apply when 3 or 4 locations are connected. For details, please consult with your local dealer. When connecting to non-Panasonic videoconference systems, connection is limited to 2 locations. *3 The KX-VC300 also allows connection of 3 or 4 locations when it is on the receiving end of a call. The optional Activation Key Card lets you expand the KX-VC300&s maximum conference points to up to 4 locations. *4 If either of the following conditions is met, the output sent to the other party will be stereo; otherwise, monaural: • The bandwidth is higher than approximately 1.8 Mbps in a 2-party videoconference call with the HD Visual Communications Unit using SIP. • The MIC position is set manually to "Center stereo", or the MIC position is set automatically with a Digital Boundary Microphone connected to the unit and no Analogue Boundary Microphone connected to the unit at the same time. *5 If either of the following conditions is met, the output sent to the other party will be stereo; otherwise, monaural: • The bandwidth is higher than approximately 1.8 Mbps in a 2-party videoconference call with the HD Visual Communications Unit using SIP. • Digital Boundary Microphones and an Analogue Boundary Microphone are not being used together. *6 With i.Zoom 2x. *7 i.Zoom function maintains high-definition picture quality. • Specification is subject to change without notice. • Dimensions and weights are approximate. | ||
