Sangoma

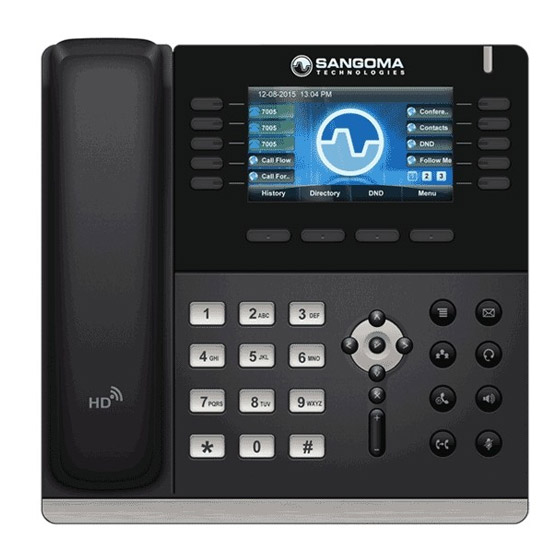

Sangoma S700 - Téléphone IP 6 Comptes SIP Ecran Couleur LED 4,5" Double Port Gigabit Ethernet

Chargement...Chargement...
-24%
Téléphone IP 6 Comptes SIP Ecran Couleur LED 4,5" Double Port Gigabit Ethernet S700

Prix Normal : 2 999,00 Dh HT

Votre Prix :2 289,00 Dh HT

Economie : 710,00 Dh - 24%

S700 6 comptes SIP-Plein téléphone haut-parleur en duplex-5-conférence à-Écran couleur de 4,3 pouces-36 touches programmables-Oreillette compatible-Ports Gigabit Ethernet-45 touches de fonction programmables

Disponibilité : En Stock
Evaluation :
  • Téléphone IP 6 Comptes SIP Ecran Couleur LED 4,5" Double Port Gigabit Ethernet S700

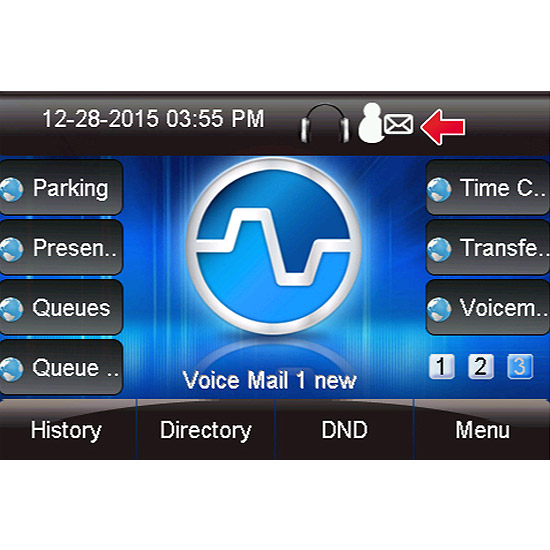

  • /Images/s700-aa.jpg

Fiche Techniques



Description du Produit


The Sangoma s700 IP Phone is an executive level phone with six Session Initiation Protocol (SIP) accounts and a competitive price point. Designed to work with FreePBX, the Sangoma s700 IP phone can automatically locate FreePBX to quickly and easily get full configuration right out of the box – true Zero Touch Configuration.

s700 Features


  • 6 SIP Accounts
  • Full duplex speaker phone
  • 5-way conferencing
  • 4.3 inch full colour display
  • 36 programmable soft keys
  • Headset compatible
  • Dual gigabit Ethernet ports
  • 45 programmable feature key


The s700 features industry standard Power over Ethernet, so no power cable or outlets required. It has full duplex speakerphone, dual Ethernet Ports, five-way conference calling, high definition voice quality, and built in Virtual Private Network (VPN) capability.

The Sangoma s700 IP Phone is so smart you can quickly and easily use them right out of the box. Each phone in the series features industry standard Power over Ethernet, so no power cable or outlets required. They have full duplex speakerphones, dual Ethernet Ports, multi-way conference calling, high definition voice quality, and they’re Virtual Private Network (VPN) capable.

Full Integration with FreePBX


FreePBX phone apps are available right on the phone, straight out of the box with no requirement for additional licenses. Users can control complicated features directly from their phones. There’s no need to remember feature codes. User applications include: Call Parking, Follow Me, Do Not Disturb, Conference Rooms, Call Forwarding, Time Conditions, Presence, Queues, Transfer to Voice Mail, Visual Voice Mail, and Log in/out.

Why is Sangoma Zero Touch Better?


VoIP telephones can be complex to install, and manually configuring many different parameters and hundreds of extensions can take hours. When you buy and install your Sangoma IP phones, the redirection server automatically points the phone to the Sangoma FreePBX for configuration. Other vendors have redirection servers, but they have to be programmed with the details of the IP PBX. Only Sangoma can provide Zero Touch provisioning with FreePBX.

When using the s700 VoIP phone, EndPoint Manager software inside FreePBX is automatically enabled. This lets your users control global settings, program their phone keys, map extensions, upload images, download new firmware, and much more.

EndPoint Manager Included


When using a Sangoma phone, EndPoint Manager software inside FreePBX is automatically enabled. This lets your users control global settings, program their phone keys, map extensions, upload images, download new firmware, and much more.

Spécifications Techniques


Phone Features

6 SIP accounts
Call hold, mute, DND (Do Not Disturb)
One-touch speed dial, hotline
Call forward, call waiting, call transfer
Redial, call return, auto answer
5-way conferencing
Direct IP call
Ring tone selection/provisioning
Set date time automatically or manually
Dial plan per account
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
XML Browser
Action URL/URI


Voice Codecs Features

HD voice: HD handset, HD speaker
Codecs: iLBC, G.722,
G.711(A/μ), GSM_FR,
G.723, G.729AB,
G.726-32
DTMF: In-band, RFC 2833, SIP INFO
Full-duplex handsfree speakerphone with AEC (Acoustic Echo Cancellation)
Voice Activity Detection (VAD)
Auto Gain Control (AGC)
Comfort Noise Generation (CNG)
Acoustic Echo Cancellation (AEC)
Packet Loss Concealment (PLC)
Adaptive Jitter Buffer (AJB)


IP-PBX Features

Busy Lamp Field (BLF)
Anonymous call, anonymous call rejection
Message Waiting Indicator (MWI).
Voice mail
Intercom, paging
Call park, call pickup
Music on hold


Display and Indicator

4.3” 480 x 272-pixel color display with backlight
24 bit depth color
LED for call and message waiting indication
Dual-color (red or green) illuminated LEDs for line status information
Wallpaper
Intuitive user interface with icons and soft keys
National language selection
Caller ID with name, number and photo


Feature Keys

10 line keys with LED
10 line keys can be programmed up to 45 various features (4-page view)
8 features keys: voice mail, headset, speaker, hold, mute, transfer, call list, conference
4 context-sensitive “soft” keys
6 navigation keys
Volume control keys
Illuminated speaker key
Illuminated headset key
Illuminated mute key


Interface

Dual-port Gigabit Ethernet
Power over Ethernet (IEEE 802.3af), class 3
1xRJ9 (4P4C) handset port
Supports up to 6 Expansion Modules


Physical Features

Stand with 3 adjustable angles
Wall mountable
External universal
AC adapter : AC
100~240V input and
DC 5V/1.2A output
Power consumption (PSU): 2.0~4.6W


Management

Configuration: browser/LCD-Menu/ auto-provision
Auto provision via
HTTP/HTTPS
FTP/TFTP
Auto-provision with PnP
Reset to factory, restart, reboot
Local tracing log export, system log
Phone lock for personal privacy protection


Management

SIP v1 (RFC2543), v2 (RFC3261)
SIP server/proxy redundancy
NAT Traversal: STUN mode
DHCP/static/PPPoE
HTTP/HTTPS web server
Time and date synchronization by SNTP
DNS-NAPTR/DNSSRV (RFC 3263)
QoS: 802.1p/Q tagging (VLAN),
Layer 3 ToS DSCP
IEEE802.1X
TLS (Transport
Layer Security)
SRTP
Open VPN
HTTPS certificate manager
AES encryption for configuration file
Digest authentication using MD5/MD5-sess

Téléchargements


iconSangoma_DataSheet_Phone-S700.pdfTélécharger
