OpenVox VS-CCU-N2930AM - Module de Serveur Asterisk 1000 utilisateur et 600 appels simultanés

Chargement...Chargement...
-50%
Module de Serveur Asterisk 1000 utilisateur et 600 appels simultanés VS-CCU-N2930AM
Module de Serveur Asterisk 1000 utilisateur et 600 appels simultanés, 16GB SSD; 2 USB ports; 2 ethernet port; 1 VGA port; 2-year warranty;

Ce produit n'est plus proposé à la vente
Disponibilité : Obsolète (Fin de vie)
Evaluation :
  • Module de Serveur Asterisk 1000 utilisateur et 600 appels simultanés VS-CCU-N2930AM
Specifications

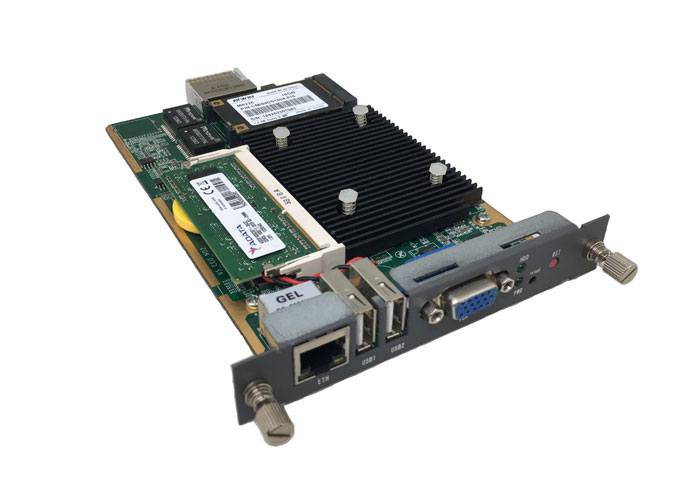

VS-CCU-N2930AM is a new version asterisk® motherboard. With intel Quad Core processors, N2930AM can easily handle 600 concurrent calls and up to 1000 users. To bring you clear, high fidelity and high definition audio/video calls, N2930AM can easily integrate with abundant HD voice and video codecs.

The N2930AM supports comprehensive protocol processing, including SIP, IAX2 protocols in IP side and BRI, PRI, SS7, R2, GSM, WCDMA in CPE side. Taking the full advantages of open source platform,the N2930AM will be preloaded with Elastix®, PBX in a FlashTM, FreePBX IPPBX software.

Technical Specifications

• Freely install your own Linux-based software
• CPU: 1.83GHz Intel(R) Celeron(R) N2930
• RAM: Up to 8GB DDR3L 1333
• Storage: 16G MSATA SSD onboard and 2.5 inch SATA HDD
• NIC: 1* 10/100/1000M & 1*10/100M
• Power Supply: 100-240V AC
• Display: VGA
• USB: 2
• Power Consumption: ~7.5W (Minimum Power Dissipation)
• Operating Temperature: 0°C to 50 °C
• Storage Temperature: -40 °C ~ 125 °C
• Humidity: 10 ~ 90% NON-CONDENSING
Certifications
• RoHS Complaint
• Software & Platform: Issabel，Elastix，FreePBX，VitalPBX，BrikerPBX

PBX


• Users: Unlimited
• Max VoIP Trunks: Unlimited
• Max Concurrent Calls: 600 Concurrent Calls with G.711 Codec, 200 Concurrent Calls with G.729 Codec
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: In-band, RFC2833, SIP INFO
• IP Services: Static IP, DHCP, VPN, Firewall, PPPoE, Bridge
• Supported codecs: ADPCM, G.711(A-Law & u-Law), G.722, G.723.1(pass through), G.726, G.728, G.729, GSM, iLBC(optional) among others.
• SIP and IAX2 support
• Web-based operator panel
• DISA(Direct Inward System Access)
• Call detail record(CDR) report
• Call recording, Call parking, call queues, Voicemail, Conference
• Echo canceller
• Callback support
• Flexible and configuration IVR
• Support for PIN sets
• Support for time conditions
• VOIP provider configuration
• Support for follow-me
• Support for ring groups
• Support for video-phones
• Channel usage reports
Warranty

• Two-Year Warranty (UPS Battery 1 Year)
• 3-Month "No-Question Asked Return Policy"
Preloaded System

• Elastix 2.5 x86_64
• Elastix 4.0 x86_64
• Issabel-20170714 x86_64
• FreePBX-1712 x86_64
• The default preloaded system is Issabel-20170714 x86_64.
