Dahua IPC-HDPW4200F-WPT - 2 MP FULL HD WI-FI IR MINI PT DOME CAMERA

Chargement...Chargement...
-34%
2 MP FULL HD WI-FI IR MINI PT DOME CAMERA IPC-HDPW4200F-WPT

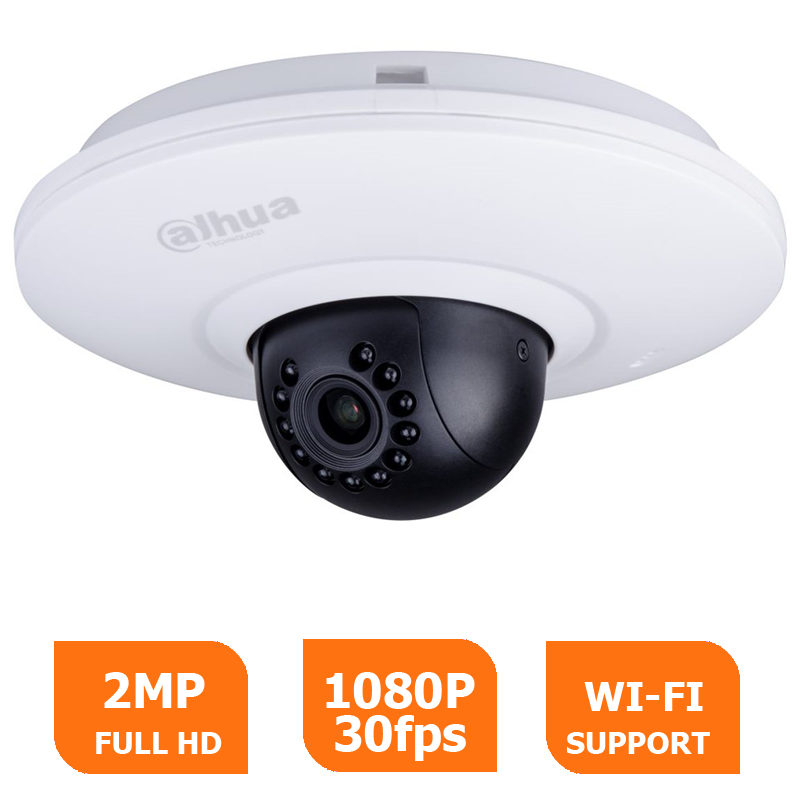

Dahua IPC-HDPW4200F-WPT 2 MP Full HD Wi-Fi IR Mini PT Dome Camera

Ce produit n'est plus proposé à la vente
Disponibilité : Obsolète (Fin de vie)
Evaluation :
  • 2 MP FULL HD WI-FI IR MINI PT DOME CAMERA IPC-HDPW4200F-WPT
  • /images/Products/IPC-HDPW4200F-WPT-1_a3698947-682a-4fe1-a945-151974787a82.png
Spécifications




• 1/2.8” 2Megapixel progressive scan CMOS
• H.264 & MJPEG dual-stream encoding
• Max 25/30fps@1080P
• Day/Night(ICR), 3DNR, AWB,AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• Max 100°/s preset speed, ±180° Pan range, 90°Tilt range
• 3.6mm fixed lens
• Max. IR LEDs Length 15m
• Wi-Fi support
• Built-in Mic
• DC12V

Model DH-IPC-HDPW4200F-WPT



Camera

Image Sensor 1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/100000
Min. Illumination 0.01Lux/F1.2(color)
S/N Ratio More than 50db
Video Output N/A


Camera Features

Max. IR LEDs Length 15m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation Off/BLC/HLC/DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Digital Zoom 3x


Lens

Focal Length 3.6mm
Max Aperture F1.2
Focus Control Manual
Angle of View H:88°
Lens Type Fixed lens
Mount Type Board-in Type


PT

Pan/ Tilt Range Pan: 0°~±180°; Tilt: 0°~90°
Preset Speed 100°/s
Preset 25

Video

Compression H.264/H.264H/MJPEG
Resolution 1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) /
CIF(352×288/352×240)
Frame Rate Main Stream 1080P/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps


Audio


Compression G.711a/G.711u/PCM
Interface Bulit-in Mic


Network

Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n)
50m(open field)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A


General

Power Supply DC12V
Power Consumption <5W
Working Environment -30℃~+50℃, Less than 95% RH
Ingress Protection N/A
Vandal Resistance N/A
Dimensions Φ130mm×58.4mm
Weight 0.25kg




Téléchargements


iconDH-IPC-HDPW4200FN-WPT.pdfTélécharger
