OpenVox VS-GW1600-G4
Menu-

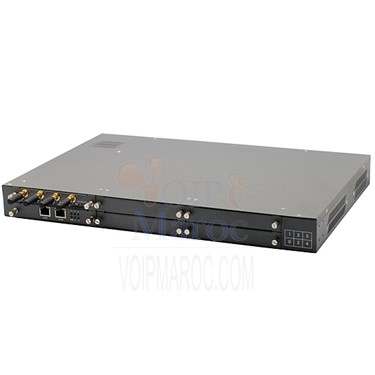

Passerelle GSM de 4 a 20 Ports
Nous consulter sur mv.ma
6 999,00 Dh HT
4 999,00 Dh HT
3 999,20 Dh HT
4 799,04 Dh TTCProduct Spotlight
OpenVox VoxStack Series GSM Gateway is an open source asterisk-based GSM VoIP Gateway solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway.Also secondary development can be completed through AMI (Asterisk Management Interface).
- Independent System for Each Module
- Affordable Price with Superior Performance
- Hot-swap Design for both Sim cards and Modules
- Compatible with Asterisk, Elastix, 3CX, FreeSWITCH Sip Server
- Available for OEM
- Lifetime Warranty*
Overview
There are two GSM Gateway models with VoxStack series GSM Gateway, the VS-GW1200-4G and VS-GW1600. The Modular Design GSM Gateways are ranging from 4 up to 20 GSM channels, developed for interconnecting a wide selection of codecs and signaling protocol, including G.711A, G.711U, G.729, G.722, G.726, GSM & SIP, to the GSM cellular networks to quickly reduce telecommunication expenses and maximize cost-savings. With the unique design of the VoxStack Gateway, it can support hot-swap for both SIM cards and GSM gateway modules. Users can simply add or remove the modules for hardware expansion or exchange. Each GSM gateway module runs an independent asterisk system inside.
The VoxStack gateway designs with a Lan Switch board that provides stackability on the hardware upgrade. It supports SMS messages sending and receiving and group sending and SMS to email. The GSM Gateways will be 100% compatible with asterisk, Elastix, trixbox, 3CX and FreeSWITCH sip server.
Technical Specifications:
- 4/8/12/16/20 GSM Channels
- 1 SIM card per GSM channel
- Quad-Band GSM 850/ 900/1800/1900 MHz
- Fast call setup
- PIN modification
- 2 LAN ports
- Storage temperature range: -40~125℃
- Operation temperature range: 0~50℃
- Operation humidity range: 10%~90% non-condensing
- Power source: 1U ATX power souce,12V/12A
- Max power: 180W
- Dimension: 44cm × 4.5cm × 30cm
- Weight:
VS-GW1600: 4301g
VS-GWM400G: 214g
Features:
- Hot-swap
- Support SMS sending, receiving, grouping sending
- Support transferring SMS to E-mail
- Support checking number
- Support SIP1.0/2.0,enhanced SIP function
- Support USSD service
- Support IMEI modification
- Compatible with Asterisk, Elastix, 3CX, FreeSWITCH SIP Server
The VS-GW1600 Includes The Following Models:

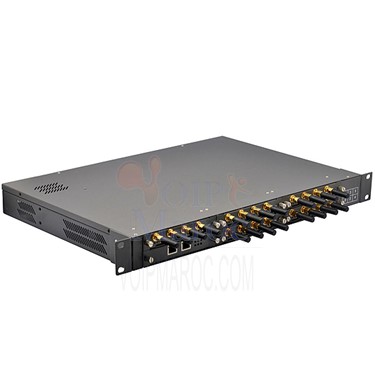

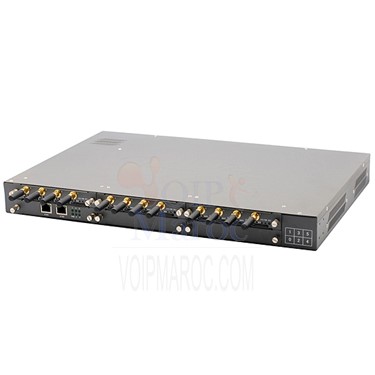

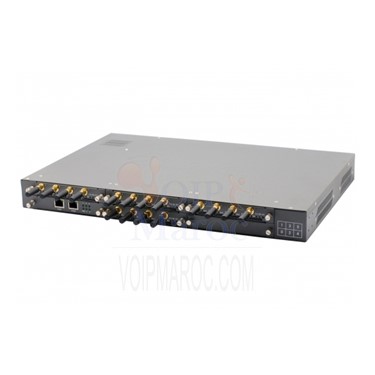

Product Model Description VS-GW1600-4G 4 GSM Channels VoIP Gateway VS-GW1600-8G 8 GSM Channels VoIP Gateway VS-GW1600-12G 12 GSM Channels VoIP Gateway VS-GW1600-16G 16 GSM Channels VoIP Gateway VS-GW1600-20G 20 GSM Channels VoIP Gateway - Plus d'images (4)
