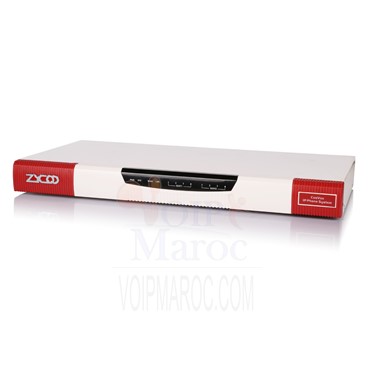

CooVox U100 IP PBX Phone System
Nous consulter sur mv.ma
14 000,00 Dh HT
10 999,00 Dh HT
8 799,20 Dh HT
10 559,04 Dh TTCFICHE TECHNIQUE
Description
The CooVox-U100 IP Phone system is the ideal solution for business with up to 500 extensions and up to 80 concurrent calls. Adopting an innovative modular design, means it is very convenient to add telephony ports to expand the phone system. or basic rate interface (BRI module).CooVox-U100 is a next-generation Hybrid IP PBX system designed and optimized for today’s business telecommunication needs. CooVox-U100 is an affordable, scalable, interoperable, secure and reliable solution which not only provides traditional PBX functions such as automated attendant and voicemail, but also many advanced features including remote extensions, remote office connection, conference bridge, call recording, call detail records (CDR), automatic call distribution (ACD), unified messaging (voice mail to email), and many more features.Zycoo CooVOX U100 Key Features
Black List
BLF (Busy Lamp Field)
CDR (Call Detailed Record)
Conference Room (3 rooms)
Call Monitoring
DID (Direct Inward Dialing Number)
DISA (Direct Inward System Access)
Distinctive Ringtone
DND
DNIS
Feature Codes
Flash Operation Panel
Follow Me
IP Phone Provisioning
IVR (Interactive Voice Responses)
Mobility Extension
Multi-language System Prompt
Multiple Language of GUI (Chinese / English )
One Touch Record
Phone Book
Phone Provisioning
Pin Sets
Record Files Download
Ringgroup
SIP Register with UDP/TCP/TLS
SIP Trunk
Skype for SIP
Smart DID
Speed Dial
Spy
SRTP
System Log
T.38 FAX(Pass-through)
Time based Call Routing
Virtual FAX
Voicemail & Voicemail to Email
System Capacity
80 Concurrent Call Legs
Up to 500 IP Phone Registers/Extensions
Recording(GSM/ default): 2,500,000 or 100,000 mins; Wav: 210,000 or 10,000 mins
Voicemail(GSM/ default): 2,500,000 or 100,000 mins; Wav: 210,000 or 10,000 mins
Call Features
Caller ID
Call Forward
Call Hold
Call Paging and Intercom
Call Park
Call Pickup
Call Queue
Call Recording
Call Routing
Blind Transfer
Attend Transfer
Call Waiting
Call Back
Dial by Name
Music on Hold / Transfer
Three-Way Conference
Video Calls
Network Features
DDNS Client
DHCP Server
IEEE802.1Q of VLAN
IP Assignment (PPPoE / DHCP / Static)
IPv4／IPv6
SNMP v1/v2
Static Route Table by manually
Trouble Shooting (Ping, Traceroute)
VPN Client (Support N2N / L2TP/PPTP/OPENVPN)
VPN Server(PPTP/L2TP/OPENVPN Server 10)
Security Features
Refuse SIP Register DoS
Refuse Abort Invite Dos
Refuse SSH Login DoS
FireWall
SRTP
Log
Asterisk Debug Log
Phone Register Log
SSH Log
System Log
Web Access Log
Environment
Working Tempreture: -10 °C -45 °C
Storage Tempreture: -30 °C -65 °C
Humidity: 10-80% No DewSPECIFICATIONS

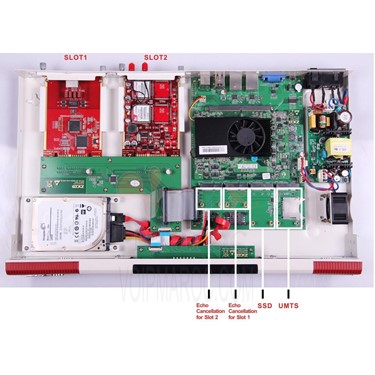

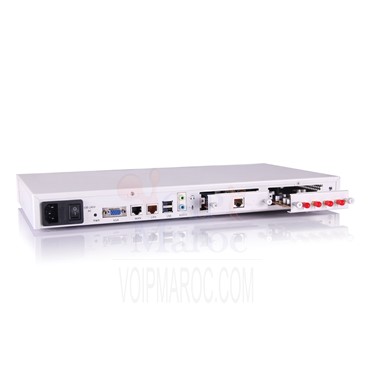

Hardware Interface
1 Power Interface
1 Power Switch
2 Ethernet Interfaces (10/100/1000Mbps)
1 VGA Interface
2 Audio Interfaces
2 USB Interfaces
2 Hardware Echo Cancellation Interfaces (onboard)
1 UMTS Interface for 3G Data (onboard)
1 SLOT 1 for ZYCOO Module Card(Analog /GSM/ E1/T1(PRI,MFC R2) /ISDN BRI(NT,TE))
1 SLOT 2 for ZYCOO Module Card(Analog / GSM/MFC R2)
CPU: DualCore 1.86 Ghz ATOM
Storage: 500GB SATA or 16GB SSD
SDRAM: 2GB DDR3
Power Supply: Internal
Input: 100 ~ 240 Vac - Plus d'images (4)
