OpenVox IX210
Menu-
IPPBX 2U Ecran LCD pour les PME
Livraison en 15 jours
19 500,00 Dh HT
16 990,00 Dh HT
15 574,16 Dh HT
18 688,99 Dh TTCFiche Technique

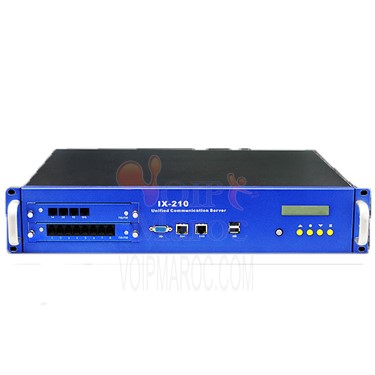

IX210 is an upgrade version of IX132, an open source asterisk-based complete IPPBX solution for SMB. With affordable price, users may easily setup their customized IPPBX.OpenVox IX210 is a standard 19" 2U appliance. It allows users to integrate up to 2 pieces of OpenVox PCI-E telephony interface cards, with any combinations of analog, BRI, PRI, GSM or transcoding interfaces. The optional hardware RAID 1 support provides better data backup for your system. The optional HDD case provides the possibility for hot plug function to the storage device. When RAID1 is installed, thus users can see the status of the storage devices from a GUI and then simply replace a backup HDD whenever needed without opening the appliance.IX210 has a design of LCD. It's convenient for you to check the IP address, System Load and so on. What's more, the IX210 provides optional redundant power supply.The IX210 supports comprehensive protocol processing, including SIP, H.323 protocols in IP side and BRI, PRI, SS7, GSM and some protocols transcoding in CPE. Taking the full advantages of open source platform, the IX210 will be preloaded with Elastix®, PBX in a FlashTM, FreePBX or trixbox® IPPBX software.Technical Specifications:
CPU: 1.86GHz Intel Atom Dual core D25501 M L2 cache, 64 bit instructionDRAM: 4 GB DDR3 SDRAM,Storage: 1 SATA slot, 1 mSATA Socket2 USB 2.0 Ports2 Ethernet Ports (1000Mbps speed)2 PCIe sockets for voice cards and other expansion1 mini PCI-E socket for extension16 Mbit flash for AMI BIOSVoltage range :100V/220V AC supply1 VGA port (DB15) for display interfaceHeader for LPC bus (use for flash recovery or I/O expansion)Low EMI Emission level and high Electro Magnetic SusceptibilityRack/Wall MountableFirmware: AMI_UEFI BIOSLCDDimension: 44cm ×8.8cm ×37.2cmWeight: 5200g （telephony cards not included）Software & Platform:Elastix®, trixbox®, PBX in a FlashTM, FreePBXOpenVox Telephony Cards Options:A400E/810E/1610E/2410EB200E/400ED130E/230E/430EG400E/410EExcept A400E, B100E, G400E and G410E, all compatible cards can be applied together with EC module.*Only two A2410E can be installed in IX210. For other configuration, please contact our sales manager for assistance.FEATURES
Modular Design for Telephony Cards ConnectionIntel Atom Dual core D2550(1.86GHz)Optional Hardware RAID 1 SupportOptional Pre-Loaded Open Source IPPBX SystemCombination of analog, BRI, PRI, GSM or transcoding interfacesAvailable for OEMAttend TransferBlind TransferBLF SupportBlacklistCallbackCDR (Call Detail Records)Call ForwardCall ParkingCall PickupCall RoutingCall TransferCall WaitingCaller IDConferenceDefine Office TimeDDNSDial by NameDISA (Direct Inward System Access)DIDsDistinctive RingtoneDND (Do Not Disturb)FAX (T.38)FirewallFollow MeIVR (Interactive Voice Response)Intercom/Zone IntercomMobility ExtensionMulti-language PromptMusic On HoldMusic On TransferOne touch recordOpenVPNPhone ProvisioningPIN User(PIN Code Control)Paging/Zone PagingPPPoEQueueRing GroupRoute by Caller IDSkype Integration (Sky2Sip)SMS to Mail/Mail to SMSSpeed DialStatic RouteThree Way CallingVoicemailVoicemail to EmailVoicemail ForwardingWeb Based Control PanelTwo Year Warranty - Plus d'images (1)
