Vtech VT-DVRDC9116
Menu-
DVR 16CH Video Compression H.264
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
Fiche Technique
Video Compression
H.264
Video System
NTSC / PAL
Operation System
Linux Based

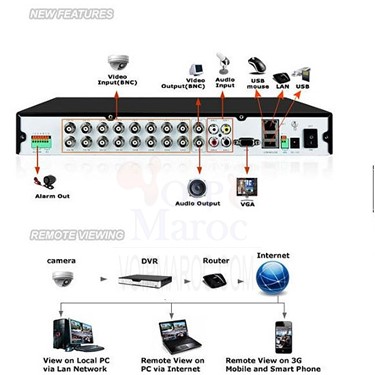

Video Input / Output
BNC16-Channel Input/ BNC1-Channel Output
Other Video Output
VGA
Audio Input / Output
RCA 4-Channel Input/ BNC1-Channel Output
Display Frame Rate
NTSC: 480fps@CIF / PAL: 400fps@CIF
Display Resolution
NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576)
Recording Frame Rate
NTSC: 480 fps@CIF/ PAL: 400 fps@CIF
Record Resolution
NTSC: CIF (352 x 240)/PAL: CIF (352 x 288)
Record Mode
Manual/ Schedule /Motion Detection/Alarm/ Motion Detection&Alarm supported
3G Mobile
Android 2.1~2.3; Symbian V3/V5,Windows mobile5.5~6.1, Ipad ios 5 and Iphone,BlackBerry 7
Mobile Function
1 Channel Viewer / Channel Switch / Control PTZ
Network Function
IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function
Network
RJ45, 10M/100M
Net Protocol
IPv4, PPPOE client, DHCP client and TCP/UDP protocol supported.
Remote Access
Remote Client Software and IE Browser
PTZ Control
RS-485
HDD Interface
SATA, Support between 250GB and 2TB
Playback Mode
Normal Play, Fast Forward, Fast Rewind, Manual
Sensor/ Alarm
4-ch Sensor Inputs / 1-ch Alarm Output
USB
USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD
Remote Control/Mouse
Included/Included
Power Supply
DC12V / 5A
Dimension
354mm (W) x 275mm (D) x 47mm (H)
