Zycoo Covox-U50-V2

Zycoo

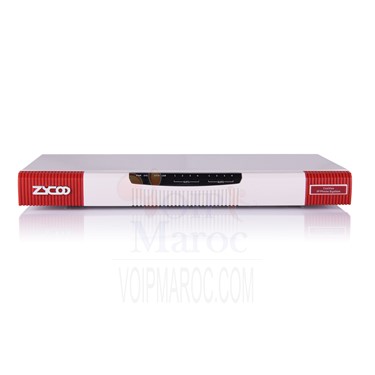

CooVox U50 V2 IP PBX Systeme de téléphonie IP Hybride Version 2

Nous consulter sur mv.ma

7 250,00 Dh HT
4 299,00 Dh HT
3 439,20 Dh HT
4 127,04 Dh TTC

FICHE TECHNIQUE

Description

CooVox U50 Version 2 et un IP PBX Systeme de téléphonie IP Hybride. Une solution ideale pour les PME qui desire avoire jusqu'à 100 extensions et 30 appels simultané. L'adoption d'une conception modulaire innovante ceci signifie qu'il est très facile d'ajouter des ports additionnelle a ce système de téléphone IP. Le CooVox-U50 V2 support les options SIP standard de l'industrie VoIP ainsi que analogique RTC (module FXO), GSM des troncs (module GSM), les postes analogiques (module FXS).

CooVox-U50 V2 is a next-generation Hybrid IP PBX system designed and optimized for today’s business telecommunication needs.
CooVox-U50 V2 is an affordable, scalable, interoperable, secure and reliable solution which not only provides traditional PBX functions such as automated attendant and voicemail, but also many advanced features including remote extensions, remote office connection, conference bridge, call recording, call detail records (CDR), automatic call distribution (ACD), unified messaging (voice mail to email), and many more features.

Zycoo CooVOX U50 Key Features
Call Features
Call Back
Call Forward
Call Group
Call Hold
Call Paging and Intercom
Call Park
Call Pickup
Call Queue
Call Recording
Call Routing
Blind Transfer
Attendant Transfer
Call Waiting
Caller ID
Dial by Name
Music On Hold/Transfer
3-Way Conference
Video Calls
PBX Features
Black List
BLF (Busy Lamp Field)
CDR (Call Detailed Record)
Conference Room (20 Rooms)
Call Monitoring
DID (Direct Inward Dialing Number)
DISA (Direct Inward System Access)
Distinctive Ringtone
DND (Do Not Disturb)
DNIS (Dialed Number Identification Service)
Feature Codes
FOP (Flash Operation Panel) Status Monitoring
Follow Me
IVR (Interactive Voice Responses)
Mobility Extension
Multi-Language Prompts
Multi-Language GUI
One Touch Recording
Phone Book
Phone Provisioning
Pin Set
Record File Download
Ring Group
SIP Register with UDP/TCP/TLS
SIP Trunk
Skype for SIP
Smart DID
Speed Dial
Spy
SRTP (Secure Realtime Transport Protocol)
T.38 Fax (Pass-through)
Time Based Rule
Fax to Email
WebRTC/ Web Dial
Voicemail & Voicemail to Email

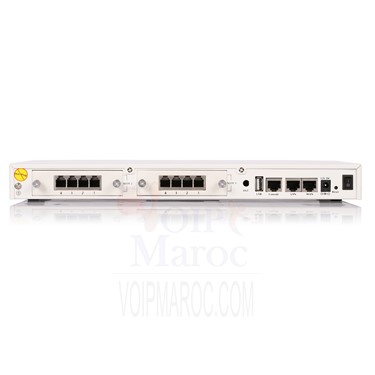

Hardware Interfaces
1 Reset Button
1 Power Interface
2 Ethernet Interfaces
1 Console Interface
1 USB Interface Slot
1/2 for Analog/GSM/WCDMA
Module Hardware Specifications
Processor: DualCore A7 1Ghz
SDRAM: DDR3 1GB
Storage: 8GB SD Card
Power Supply: Input AC 100~240V, 50/60Hz;
Output DC 12V/2A
Environment Working
Temperature: 0 ~ 40°C
Storage Temperature: -20 ~ 55°C
Humidity: 5 ~ 95% Non-condensing - See more at: http://www.zycoo.com/html/U50_V2.html#sthash.kRdnwavN.dpuf
System Capacities
30 Concurrent Calls
Up to 100 IP Phone Registers/Extensions
Recording: 36,000 mins (.gsm); 4,000 mins (.wav)
Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)
Codecs & Protocols
Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/
G.726/G.729/GSM/SPEEX
Video Codecs: H.261/H.263/H.263+/H.264
Protocols: SIP (RFC3261)/IAX2
DTMF: RFC2833/SIP INFO/In-Band
Network Features
DDNS Client
DHCP Server
IPv4/IPv6/IEEE802.1Q
IP Assignment (PPPoE/DHCP/Static)
SNMP v1/v2
TR069
Static Route Table
Trouble Shooting (Ping/Traceroute)
VPN Client (L2TP/PPTP/OpenVPN/N2N/IPSec)
VPN Server (L2TP/PPTP/OpenVPN/IPSec)
Security Features
Refuse SIP Register DoS
Refuse Abort Invite DoS
Refuse SSH Login DoS
Firewall
Logs
PBX Log
Web Access Log
PBX Debug Log

System Capacities
30 Concurrent Calls
Up to 100 IP Phone Registers/Extensions
Recording: 36,000 mins (.gsm); 4,000 mins (.wav)
Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)
Codecs & Protocols
Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/
G.726/G.729/GSM/SPEEX
Video Codecs: H.261/H.263/H.263+/H.264
Protocols: SIP (RFC3261)/IAX2
DTMF: RFC2833/SIP INFO/In-Band
Network Features
DDNS Client
DHCP Server
IPv4/IPv6/IEEE802.1Q
IP Assignment (PPPoE/DHCP/Static)
SNMP v1/v2
TR069
Static Route Table
Trouble Shooting (Ping/Traceroute)
VPN Client (L2TP/PPTP/OpenVPN/N2N/IPSec)
VPN Server (L2TP/PPTP/OpenVPN/IPSec)
Security Features
Refuse SIP Register DoS
Refuse Abort Invite DoS
Refuse SSH Login DoS
Firewall
Logs
PBX Log
Web Access Log
PBX Debug Log
