Panasonic KX-VC600CX
Menu-
Système de visioconférence & Téléprésence
Nous consulter sur mv.ma
123 750,00 Dh HT
99 000,00 Dh HT
92 565,00 Dh HT
111 078,00 Dh TTCCaractéristiques Techniques

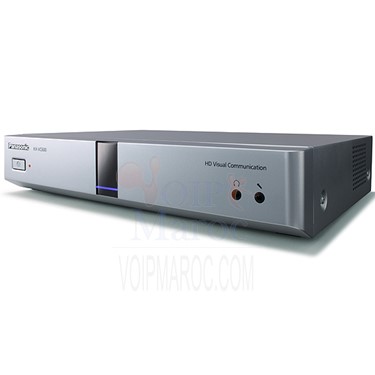

PANASONIC KX-VC600CX
- Audio et vidéo Full HD d'excellente qualité
- Installation facile et utilisation simple
- Connexion stable (QoS audiovisuel)
- Jusqu'à 4 sites en conférence
- Possibilité de connecter deux caméras
- Système à faible coût permettant de faire des économies
Video Video Codec Compatible Resolutions 1920 x 1080p *1 / 1920 x 1080i *1 / 1280 x 720p / 1280 x 540p / 960 x 540p / 704 x 480p / 352 x 240p Camera Input Resolution 1920 x 1080i PC Input Resolutions VGA, SVGA, XGA, HD, WXGA Audio Audio Codec No. of Channels MPEG-4 AAC LD: 2 G.722, G.722.1, G.722.1 Annex C: 1 Bitrate MPEG-4 AAC LD: 32 kbit/s (Monaural only), 64 kbit/s, 96 kbit/s (per channel) G.722: 64 kbit/s G.722.1: 32 kbit/s G.722.1 Annex C: 48 kbit/s Sound Processing Function Stereo Echo Canceller Microphone Digital Boundary Microphone KX-VCA001 (Option) Analogue Boundary Microphone KX-VCA002 (Option) Transmission Communication Protocol SIP, H.323 QoS AV QoS Call Control (wired and wireless) Encrypted Transmission AES Maximum conference points 4 *2 External Interface Video Inputs HDMI (Camera) x 2, RGB (PC) x 1 (Switchable 3 inputs) Video Output HDMI x 1, RCA (Component) x 1 Audio Input Analogue Boundary Microphone port x 1, Digital Boundary Microphone port x 1, RCA (Stereo) x 1, Stereo mini-plug (Headset) x 1 Audio Output RCA (Stereo) x 1 (Audio output to display is via HDMI), Stereo mini-plug (Headset) x 1 Network RJ45 port x 1 Dimensions (width x depth x height) Approx. 320 mm x approx. 230 mm x approx. 60 mm Weight Approx. 2.0 kg Power Input AC 100-240 V, 1.2-0.6 A, 50/60 Hz DC Power Input DC 16 V, 2.5 A Power Consumption Maximum: approx. 39 W Operating Temperature 0 °C to 40 °C Operating Humidity 10 % to 90 % (non-condensing) NOTE *1 The optional Activation Key Card lets you upgrade the maximum resolution of the KX-VC300 system to 1080p/i. *2 Some restrictions apply when 3 or 4 locations are connected. For details, please consult with your local dealer. When connecting to non-Panasonic videoconference systems, connection is limited to 2 locations. *3 The KX-VC300 also allows connection of 3 or 4 locations when it is on the receiving end of a call. The optional Activation Key Card lets you expand the KX-VC300&s maximum conference points to up to 4 locations. *4 If either of the following conditions is met, the output sent to the other party will be stereo; otherwise, monaural: • The bandwidth is higher than approximately 1.8 Mbps in a 2-party videoconference call with the HD Visual Communications Unit using SIP. • The MIC position is set manually to "Center stereo", or the MIC position is set automatically with a Digital Boundary Microphone connected to the unit and no Analogue Boundary Microphone connected to the unit at the same time. *5 If either of the following conditions is met, the output sent to the other party will be stereo; otherwise, monaural: • The bandwidth is higher than approximately 1.8 Mbps in a 2-party videoconference call with the HD Visual Communications Unit using SIP. • Digital Boundary Microphones and an Analogue Boundary Microphone are not being used together. *6 With i.Zoom 2x. *7 i.Zoom function maintains high-definition picture quality. • Specification is subject to change without notice. • Dimensions and weights are approximate. - Plus d'images (3)
