  • IPBX Asterisk a 2 Lignes avec 4 Postes IP

    Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente

    Evaluer ce produit.
    IPBX Asterisk a 2 Lignes avec 4 Postes IP

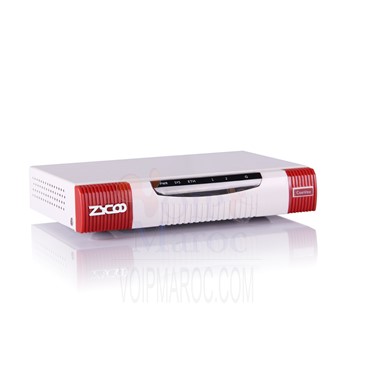

    Fiche Technique CooVox-U20 V2


    Description
    CooVox-U20 Version 2 IP Phone system is the second generation of Mini IP Phone system released from ZYCOO, meanwhile it's the first Mobile IP Phone system with the ability to use the GSM or UMTS (3G) module to connect to the mobile network for data transport.CooVox-U20 is a next-generation smart IP PBX system designed and optimized for today's business telecommunication needs.CooVox-U20 is an affordable, scalable, interoperable, secure and reliable solution which not only provides traditional PBX functions such as automated attendant and voicemail, but also many advanced features including remote extensions, remote office connection, conference bridge, call recording, call detail records (CDR), automatic call distribution (ACD), unified messaging (voice mail to email), and many more features.


    SPECIFICATIONS
    Up to 15 Concurrent Calls
    Up to 20 Conferences
    Up to 30 IP Phone Registers/Extensions
    Recording: 36,000 mins (.gsm); 4,000 mins (.wav)
    Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)

    Codecs & Protocols

    Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/ G.726/G.729/GSM/SPEEX
    Video Codecs: H.261/H.263/H.263+/H.264
    Protocols: SIP (RFC3261)/IAX2
    DTMF: RFC2833/SIP INFO/In-Band

    Network Features

    DDNS Client
    DHCP Server
    IPv4/IPv6/IEEE802.1Q
    IP Assignment (PPPoE/DHCP/Static)
    SNMP v1/v2
    TR069
    Static Route Table
    Trouble Shooting (Ping/Traceroute)
    VPN Client (N2N/L2TP/PPTP/OpenVPN/IPSec)
    VPN Server (PPTP/L2TP/OpenVPN/IPSec)

    Security Features

    Refuse SIP Register DoS
    Refuse Abort Invite DoS
    Refuse SSH Login DoS

    Logs

    PBX Log
    Web Access Log
    PBX Debug Log

    Interface

    1 Reset Button
    1 Power Interface
    1 Ethernet Interface
    2 Analog Ports (FXO/FXS)
    1 USB 2.0 Interface for Storage
    1 Console Port


    Hardware
    Processor: DualCore A7(1GHz)
    SDRAM: DDR3 512MB
    Storage: 8GB SD Card (Industry Standard)
    Power Supply: Input AC 100~240V, 50/60Hz;
    Output DC 12V/1A

    System
    Asterisk 1.8

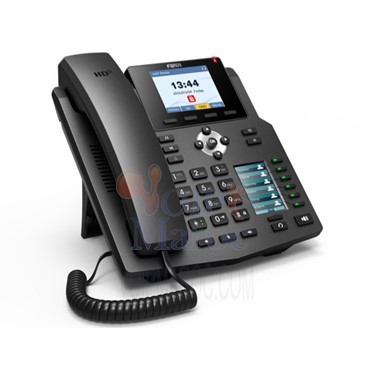

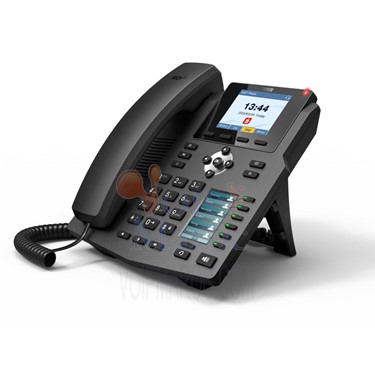

    Fiche Technique Fanvil X4


    Description du Produit
    Téléphone IP X4SG avec Couleur LCD 2.8" avec une clé intelligente DSS-cartographie Couleur LCD pour le marché de l'entreprise. X4 est livré avec des fonctionnalités d'entreprise complets et l'interopérabilité avec les principales plates-formes, comme Asterisk, Broadsoft, 3CX, Elastix, etc.

    Le DSS-clé cartographie LCD est conçu avec intelligence pour soutenir l'utilisation dynamique de remplacer les modules d'extension. Il y a 8 touches DSS correspondent à l'écran LCD de fournir ligne dynamique / DSS / BLF fonctions jusqu'à cinq pages à 30 touches DSS totales virtualisés. L'utilisateur peut configurer / personnaliser chaque touche DSS dans chaque page. Chaque touche DSS a une indication LED de couleurs vert, rouge, et jaune pour refléter l'état de la touche. Il ya aussi un bouton DSS de notification d'événement pour avertir l'utilisateur chaque fois qu'il ya un événement dans un autre page (s). Un bouton page de raccourci est également conçu pour permettre à l'utilisateur de basculer rapidement entre les pages. X4 est le choix le plus économique de bureaux de PME et grandes entreprises superviseurs.

    Main Features
    • Call out / answer / reject
    • Mute / Unmute (microphone)
    • Call Hold / Resume
    • Call Waiting
    • Intercom
    • Caller ID Display
    • Speed Dial
    • Anonymous Call (Hide Caller ID)
    • Call Forwarding (Always/Busy/No Answer)
    • Call Transfer (Attended/Unattended)
    • Call Parking/Pick-up (depending on server)
    • Redial/Auto-Redial
    • Do-Not-Disturb (per line / per phone)
    • Auto-Answering (per line)
    • Voice Message (on server)
    • Local 3-way Conference
    • Hot Line
    • Hot-Desking

    Specifications
    Generic

    • 2.8 inch color-screen
    • 4 SIP Lines
    • HD voice
    • Support EHS Headphone
    • 6 Programmable DSS keys, dynamic display ，support up to 30 programmable keys custom configuration
    •  POE Enabled
    •  2 Color LCDs (Main + DSS)
    •  Handset(HS) / Hands-free(HF) / Headphone(HP) mode
    •  Intelligent DSS Keys
    •  Desktop / Wall-mount installation
    •  Optional External Power Supply
    •  Economical and Environmental friendly package
    •  Industrial Standard Certifications: CE/FCC


    Call Features
    • Call out / answer / reject
    •  Mute / Unmute (microphone)
    •  Call Hold / Resume
    •  Call Waiting
    •  Intercom
    •  Caller ID Display
    •  Speed Dial
    •  Anonymous Call (Hide Caller ID)
    •  Call Forwarding (Always/Busy/No Answer)
    •  Call Transfer (Attended/Unattended)
    •  Call Parking/Pick-up (depending on server)
    •  Redial/Auto-Redial
    •  Do-Not-Disturb (per line / per phone)
    •  Auto-Answering (per line)
    •  Voice Message (on server)
    •  Local 3-way Conference
    •  Hot Line
    •  Hot-Desking


    Phone Features
    •  Phonebook (500 entries)
    •  Remote Phonebook (XML/LDAP)
    •  Call log (300 entries, in/out/missed)
    •  Black/White List Call Filtering
    •  Voice Message Waiting Indication (VMWI)
    •  Programmable DSS/Soft keys
    •  Network Time Synchronization
    •  Action URL / Active URI


    Audio
    •  HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
    •  Wideband ADC/DAC 16KHz Sampling
    •  Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
    •  Wideband CODEC: G.722
    •  Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
    •  Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
    •  Packet Loss Concealment (PLC)
    •  Dynamic Adaptive Jitter Buffer up to 300ms
    •  DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO


    Networking
    •  Physical: 10/100Mbps(X4SP), 10/100/ optionel: 1000Mbps(X4SG) Ethernet, dual bridged port for PC bypass
    •  IP Configuration: Static / DHCP / PPPoE
    •  Network Access Control: 802.1x
    •  VPN: L2TP (Basic Unencrypted) / OpenVPN
    •  VLAN
    •  QoS


    Protocols
    •  SIP2.0 over UDP/TCP/TLS
    •  RTP/RTCP/SRTP
    •  STUN
    •  DHCP
    •  PPPoE
    •  802.1x
    •  L2TP (Basic Unencrypted)
    •  OpenVPN
    •  SNTP
    •  FTP/TFTP
    •  HTTP/HTTPS
    •  TR069

    RFCs: 354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976/3261/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/5865


    Deployment & Maintenance
    •  Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/
    •  DHCP OPT66/SIP PNP/TR069
    •  Web Management Portal
    •  Web-based Packet Dump
    •  Configuration Export / Import
    •  Phonebook Import/Export
    •  Firmware Upgrade
    •  Syslog


    Physical Specifications
    •  Main LCD x1: 128x64 dot-matrix with backlit
    •  DSS Key-mapping LCD x1: 64x192 dot-matrix
    •  Keypad: 38 keys, including:
         •  4 Soft-keys
         •  3 Function keys
         •  4+1 Navigation keys + OK
         •  12 Standard Phone Digits keys
         •  3 Volume Control keys, Up/Down/Mute(Microphone)
         •  1 Hands-free key
         •  8 DSS Keys with tri-color LED
         •  1 Page-Switch (PS) key with tri-color LED
         •  1 Page-Jump/Configuration (PJC) key
    •  HD Hands-free Speaker (0 ~ 7KHz) x1
    •  HD Hands-free Microphone (0 ~ 7KHz) x1
    •  HD Handset (RJ9) x1
    •  Standard RJ9 Handset Wire x1
    •  1.5M CAT5 Ethernet Cable x1
    •  RJ9 Phone Jacket x2: Handset x1, Headphone x1
    •  RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled),
    •  PC x1 (Bridged to Network)
    •  Main Chipset: Broadcom
    •  DC Power Input: 5V/1A
     •  Power Consumption: (X4) Idle – ~ 1.1W, Peak – ~1.8W
     •  (X4G) Idle – ~ 1.55W, Peak – ~2.25W
     •  Working Temperature: 0 ~ 40℃
     •  Working Humidity: 10 ~ 65%
     •  Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
     •  Color: Black
     •  Package Dimensions: 285x270x65mm (W x H x L)

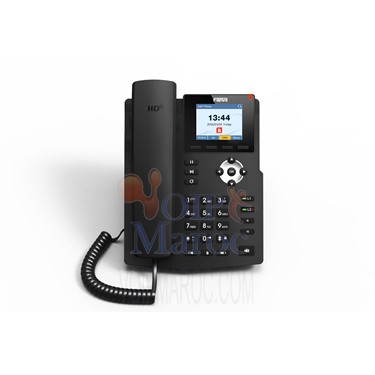

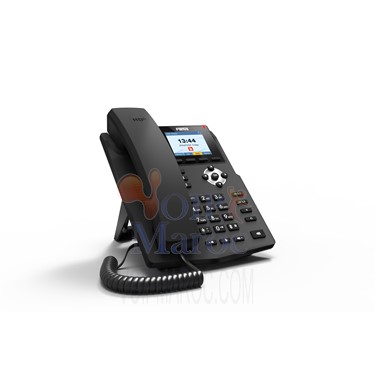

    Fiche Technique Fanvil X3SP


    Description du Produit
    The Fanvil X3SP IP Phone is an industrial masterpiece, offering superior user experience and simplicity for home and office users with elegant appearance and intelligent software.

    Main Features
     Call out/answer/reject
     Mute / Unmute (microphone)
     Call Hold / Resume
     Call Waiting
     Intercom
     Caller ID Display
     Call Forwarding (Always/Busy/No Answer)
     Call Transfer (Attended/Unattended)
     Call Parking/Pick-up (depending on server)
     Redial
     Do-Not-Disturb (per line / per phone)
     Auto-Answering (per line)
     Voice Message (on server)
     Local 3-way Conference
     Hot Line

    Specifications
    • 2.4 inch color-screen
    • 2 SIP Lines
    •  HD Voice
    • Support EHS Headphone
    •Compatible with major platforms: Broadsoft, 3CX, Asterisk, Elastix, etc
     User Friendly Graphical Menu with Help description
     POE Enabled (X3SP)
     Handset (HS) / Hands-free (HF) / Headphone (HP) mode
     Desktop / Wall-mount installation
     External Power Supply (X3S)
     Economical and Environmental friendly package
     Industrial Standard Certifications: CE/FCC

    Call Features
     Call out / answer / reject
     Mute / Unmute (microphone)
     Call Hold / Resume
     Call Waiting
     Intercom
     Caller ID Display
     Call Forwarding (Always/Busy/No Answer)
     Call Transfer (Attended/Unattended)
     Call Parking/Pick-up (depending on server)
     Redial
     Do-Not-Disturb (per line / per phone)
     Auto-Answering (per line)
     Voice Message (on server)
     Local 3-way Conference
     Hot Line

    Phone Features
     Initialization Configuration Wizard
     Up to 5 User Accounts / Profiles with individual phonebook/call log/configurations/PIN
     Phone Accessibility Control by User PIN
     Intelligent Phonebook (up to 500 entries total)
     Cloud Phonebook (XML)
     Intelligent Contact Number Matching / Filtering
     Call log (300 entries total, in/out/missed)
     Call Connection Quality (QoS) Measurement and Indication
     Voice Message Waiting Indication (VMWI)
     Network Time Synchronization

    Audio
     HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
     Wideband ADC/DAC 16KHz Sampling
     Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
     Wideband CODEC: G.722
     Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
     Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
     Packet Loss Concealment (PLC)
     Dynamic Adaptive Jitter Buffer up to 300ms
     DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO Networking
     Physical: 10/100 ou x3SG 1000 Mbps Ethernet, dual bridged port for PC bypass
     IP Configuration: Static / DHCP / PPPoE
     Network Access Control: 802.1x
     VPN: L2TP (Basic Unencrypted) / OpenVPN
     VLAN
     QoS

    Protocols
     SIP2.0 over UDP/TCP/TLS
     RTP/RTCP/SRTP
     STUN
     DHCP
     PPPoE
     802.1x
     L2TP (Basic Unencrypted)
     OpenVPN
     SNTP
     FTP/TFTP
     HTTP/HTTPS
     TR069

    RFCs:
    354/1321/1350/1769/1889/1890/2131/2132/2616/ 2617/2661/2833/2976/3261/3262/3263/3264/3265/ 3268/3311/3489/3711/4346/4566/5630/5865

    Deployment & Maintenance
     Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
     Web Management Portal
     Web-based Packet Dump
     Configuration Backup/Restore
     Auto/Manual Online Software Upgrade
     Syslog

    Physical Specifications
     LCD x1: 128x48 dot-matrix with backlit
     Keypad: 25 keys, including
          4 Soft-keys
          12 Standard Phone Digits keys
          2 Navigation keys (Up/Down)
          2 Line keys with tri-color LED
          1 Redial / Call Log Key
          3 Volume Control keys, Up/Down/Mute(Microphone)
          1 Hands-free / Headphone key
     HD Hands-free Speaker (0 ~ 7KHz) x1
     HD Hands-free Microphone (0 ~ 7KHz) x1
     HD Handset (RJ9) x1
     Standard RJ9 Handset Wire x1
     1.5M CAT5 Ethernet Cable x1
     RJ9 Phone Jacket x2: Handset x1, Headphone x1
     RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled, X3P only), PC x1 (Bridged to Network)
     Main Chipset: Broadcom
     DC Power Input: 5V/1A
     Power Consumption: Idle – ~ 1.1W, Peak – ~ 1.8W
     Working Temperature: 0 ~ 40℃
     Working Humidity: 10 ~ 65%
     Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
     Color: Black (K) / White (W) / Red (R) / Blue (B) / Yellow (Y)
     Package Dimensions: 275x215x62mm(W x H x L)
